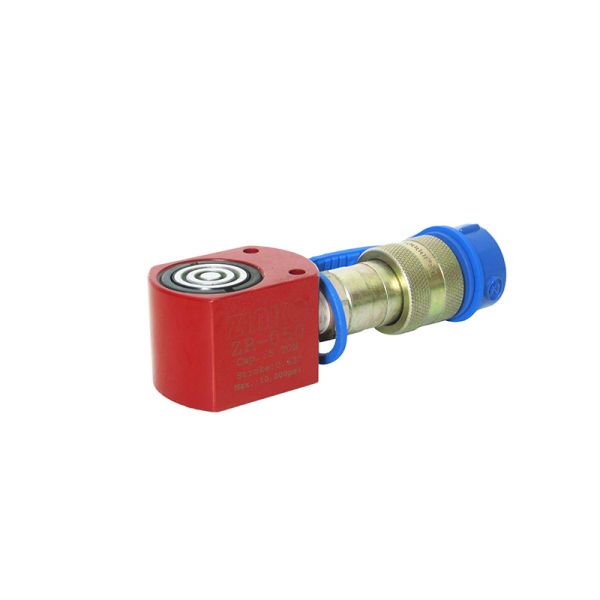

ZR-050, 5 Ton 0.63" Stroke Heavy Duty Hydraulic Cylinder

$314.83
In stock
Only 1 left
SKU
21-050
Overview
The 5 ton 0.63" stroke hydraulic cylinders of our store are designed for use in a variety of applications where lifting, pushing, bending or holding may be required. Ideal for use in shop, agricultural, automotive/truck service, and construction maintenance.

Special Features:

  • Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
  • Can be used in any positions.
  • Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
  • Baked enamel finish for outstanding corrosion prevention.
  • Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
  • Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
  • Collar Plunger thread and base mounting hole provide for easy fixture.
  • Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
  • With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.

    Country of Origin: Taiwan
More Information
Capacity (Tons) 5
Stroke (in) 0.63
Oil Capacity (in³) 0.61
Cylinder Effective Area (in²) 1
Minimum Height (in) 1.61
Maximum Heights (in) 2.24
Outside Diameter (in) 2.28
Weight (lbs) 4.000000
