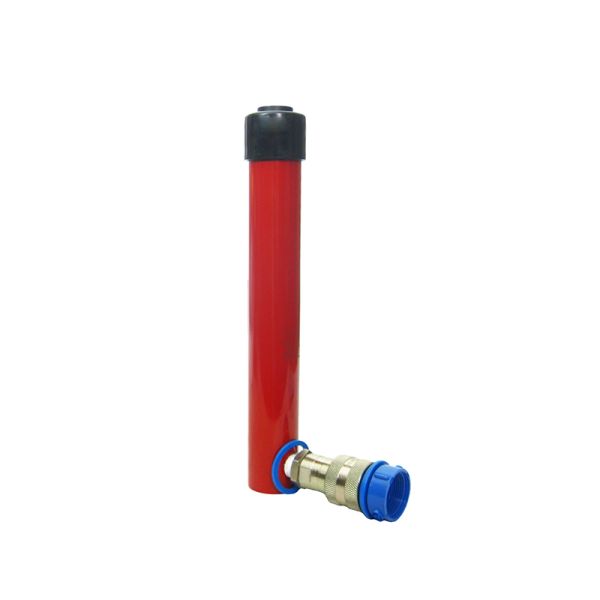

ZR-057, 5 Ton 7" Stroke Heavy Duty Hydraulic Cylinder
$459.91
Out of stock
SKU
21-057
Overview
The 5 ton 7" stroke hydraulic cylinders of our store are designed for use in a variety of applications where lifting, pushing, bending or holding may be required. Ideal for use in shop, agricultural, automotive/truck service, and construction maintenance.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 5 |
|---|---|
| Stroke (in) | 7.00 |
| Oil Capacity (in³) | 7.01 |
| Cylinder Effective Area (in²) | 1 |
| Minimum Height (in) | 10.75 |
| Maximum Heights (in) | 17.75 |
| Outside Diameter (in) | 1.50 |
| Weight (lbs) | 7.000000 |
