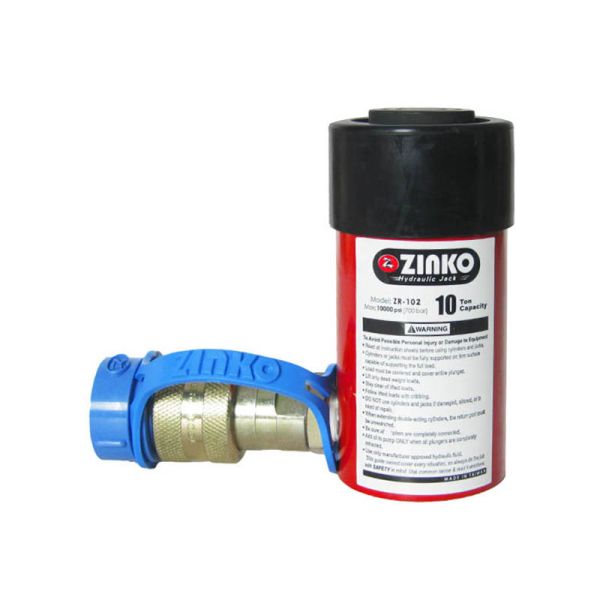

ZR-102, 10 Ton 2" Stroke Heavy Duty Hydraulic Cylinder
$379.54
In stock
SKU
21-102
Overview
The ZR-102 is a 10-ton single-acting cylinder built for dependable lifting, pushing, and positioning in shop, field, and industrial settings. Its compact, rugged design delivers consistent force across a 2” stroke where space is limited, and a full line of accessories makes it easy to adapt to the job at hand. This 10-ton model is compatible with Zinko's snap-type and threaded-type cylinder adapters, so you can match the connection to your existing setup. An optional base is also available for added stability and a wider footprint on uneven or soft surfaces.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 10 |
|---|---|
| Stroke (in) | 2.12 |
| Oil Capacity (in³) | 4.76 |
| Cylinder Effective Area (in²) | 2.24 |
| Minimum Height (in) | 4.76 |
| Maximum Heights (in) | 6.88 |
| Outside Diameter (in) | 2.24 |
| Weight (lbs) | 6.000000 |
