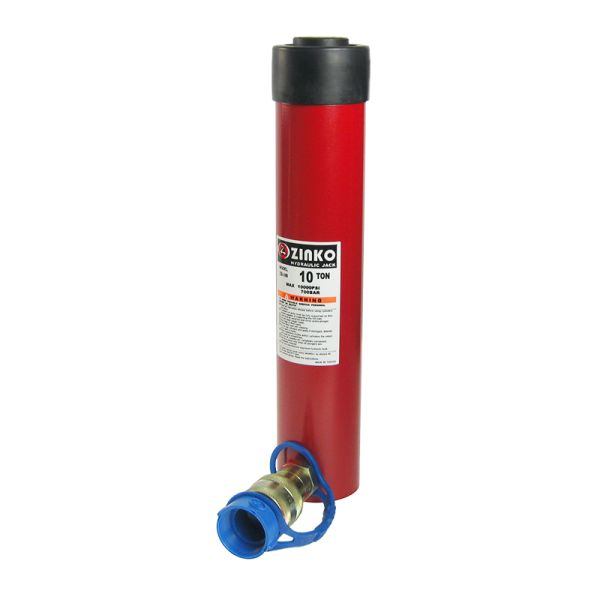

ZR-108, 10 ton 8" Stroke Heavy Duty Hydraulic Cylinder
The ZR-108 is a 10-ton single-acting hydraulic cylinder engineered for dependable lifting, pushing, bending, and positioning in shop, field, and industrial settings.
Built from industrial-grade alloy steel with a chrome-plated piston rod, its rugged design delivers consistent force requiring extended vertical travel and high-clearance positioning.
This model features an 11.73" collapsed height and an 8.00" stroke that extends to a 19.73" maximum height for precise alignment. It comes standard with a 3/8" N.P.T. fast-flow quick-connection coupler and a protective dust cap for immediate pairing with standard hydraulic pumps.
For maximum workplace adaptability, the cylinder includes a threaded collar, internal threads, and dual 5/16-18 UNC base mounting holes. It seamlessly pairs with various Zinko accessories, including snap-type and threaded-type cylinder adapters, to match your existing setup. An optional base is also available for added stability and a wider footprint on uneven or soft surfaces.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 10 |
|---|---|
| Stroke (in) | 8.00 |
| Oil Capacity (in³) | 17.94 |
| Cylinder Effective Area (in²) | 2.24 |
| Minimum Height (in) | 11.73 |
| Maximum Heights (in) | 19.73 |
| Outside Diameter (in) | 2.24 |
| Weight (lbs) | 13.000000 |
