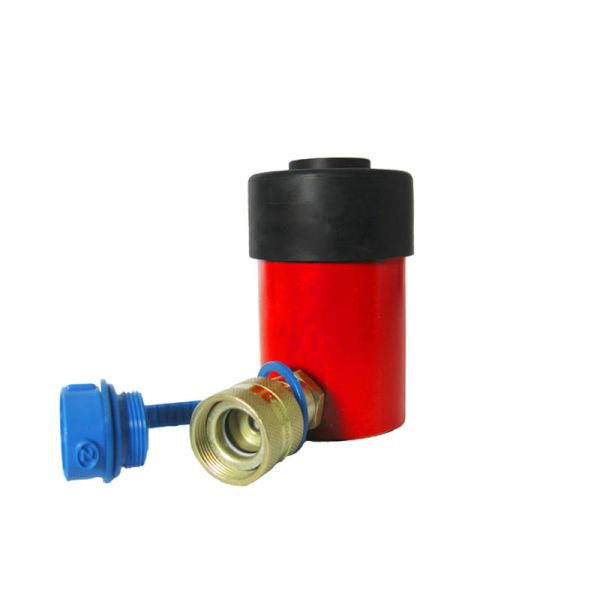

ZR-151, 15 Ton 1" Stroke Heavy Duty Hydraulic Cylinder
The ZR-151 is a 15-ton single-acting cylinder with a 1" stroke, suited to shop, agricultural, automotive/truck service, and construction maintenance work where lifting, pushing, bending, or holding a load is required. It's rated to 10,000 psi (700 bar) and operates with a hand, air, or electric pump.
The piston rod is chrome-plated, high-strength alloy steel for wear and corrosion resistance, with polyurethane seals and wipers to limit contamination. A hardened saddle resists plunger jamming and slippage, a steel top stop ring guards against blow-out through full-stroke travel, and a one-piece copper ring cradles the rod to absorb eccentric and side loading. A heavy-duty return spring gives fast, consistent retraction, and the cylinder can be operated in any position. Finish is baked enamel for corrosion protection.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 0.98 |
| Oil Capacity (in³) | 3.11 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 4.88 |
| Maximum Heights (in) | 5.86 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 10.000000 |
