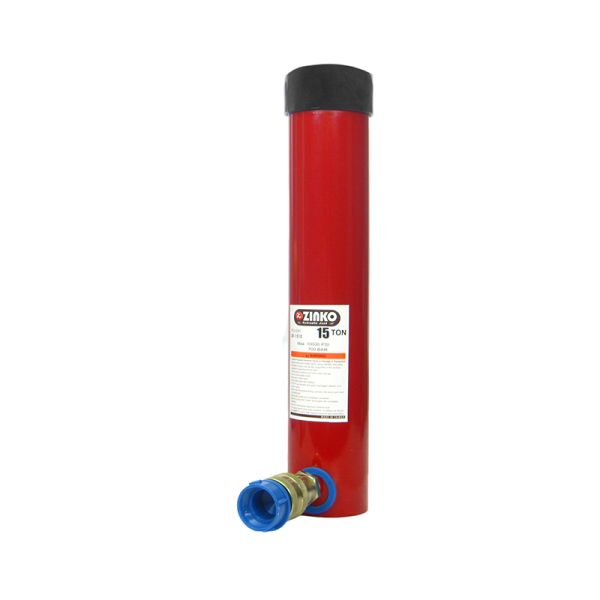

ZR-1510, 15 Ton 10" Stroke Heavy Duty Hydraulic Cylinder
With a 10" stroke, the ZR-1510 is built for 15-ton jobs requiring significant plunger extension — deep lifts, long pushes, or bends where reach matters as much as capacity. It fits the same shop, agricultural, automotive/truck service, and construction maintenance use cases as the rest of the ZR line, rated to 10,000 psi (700 bar) and powered by hand, air, or electric pump.
It's constructed with a chrome-plated, high-strength alloy steel piston rod for wear and corrosion resistance, backed by polyurethane seals and wipers that keep out contamination. The hardened saddle guards against plunger jamming and slippage under load, a steel top stop ring protects against blow-out through the full stroke, and a one-piece copper ring supports the rod against eccentric and side loading. A heavy-duty return spring gives quick, consistent retraction, the cylinder can be operated in any position, and a baked enamel finish rounds out its corrosion resistance.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 10.00 |
| Oil Capacity (in³) | 31.48 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 14.68 |
| Maximum Heights (in) | 24.68 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 24.000000 |
