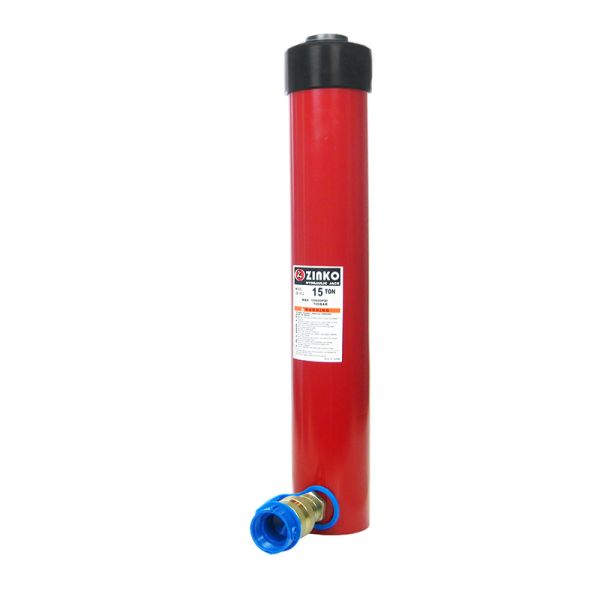

ZR-1512, 15 Ton 12" Stroke Heavy Duty Hydraulic Cylinder
The ZR-1512 provides a 12" stroke in the 15-ton class, suited to work requiring long plunger travel — deep-reach lifting, extended pushing, or bending applications where a shorter-stroke cylinder wouldn't cover the distance. It's built for shop, agricultural, automotive/truck service, and construction maintenance use, rated to 10,000 psi (700 bar), and runs on hand, air, or electric pump power.
Construction includes a chrome-plated, high-strength alloy steel piston rod for wear and corrosion resistance, with polyurethane seals and wipers to limit contamination. A hardened saddle prevents plunger jamming and slippage under load, a steel top stop ring guards against blow-out across the full stroke, and a one-piece copper ring cradles the rod to absorb eccentric and side loading. A heavy-duty return spring keeps retraction fast and consistent, the cylinder operates in any position, and a baked enamel finish adds further corrosion protection.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 12.00 |
| Oil Capacity (in³) | 37.77 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 16.65 |
| Maximum Heights (in) | 28.65 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 28.000000 |
