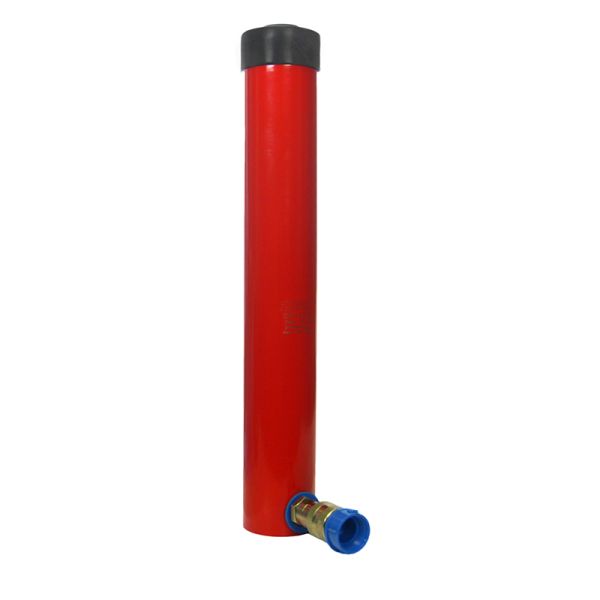

ZR-1514, 15 Ton 14" Stroke Heavy Duty Hydraulic Cylinder
At a 14" stroke, the ZR-1514 is the longest-travel option in the 15-ton ZR line, intended for jobs where extended plunger reach is the priority — deep lifts, long-distance pushing, or bending work that outpaces shorter-stroke cylinders. It shares the same industrial-grade build for shop, agricultural, automotive/truck service, and construction maintenance applications, rated to 10,000 psi (700 bar) and compatible with hand, air, or electric pumps.
The piston rod is chrome-plated, high-strength alloy steel for resistance to wear and corrosion, with polyurethane seals and wipers keeping contamination out. A hardened saddle resists jamming and slippage under load, a steel top stop ring protects against blow-out through the full stroke, and a one-piece copper ring supports the rod against eccentric and side loading. A heavy-duty return spring provides quick, consistent retraction, the unit can be run in any orientation, and a baked enamel finish completes the corrosion protection.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 14.00 |
| Oil Capacity (in³) | 44.12 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 18.66 |
| Maximum Heights (in) | 32.66 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 30.000000 |
