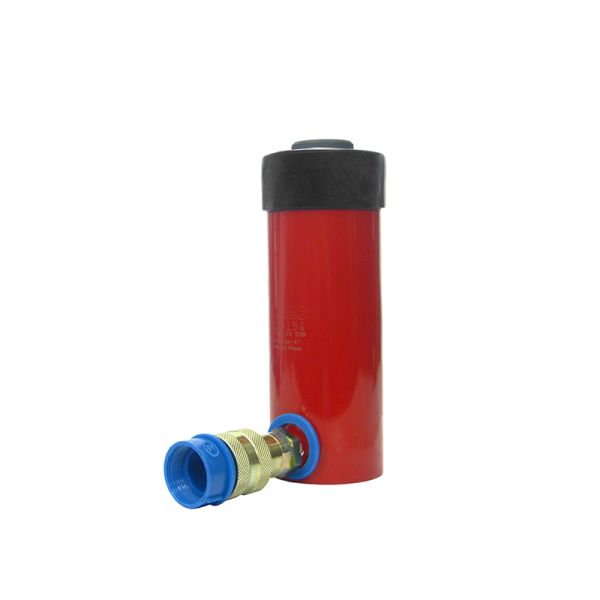

ZR-154, 15 Ton 4" Stroke Heavy Duty Hydraulic Cylinder
The ZR-154 delivers a 4" stroke in the 15-ton class, giving enough plunger travel for jobs that need more than a quick nudge — deeper lifts, longer pushes, or setups where repositioning the cylinder mid-task isn't practical. It's an industrial-grade, general-purpose cylinder suited to shop, agricultural, automotive/truck service, and construction maintenance applications, rated to 10,000 psi (700 bar) and driven by a hand, air, or electric pump.
It's built around a chrome-plated, high-strength alloy steel piston rod for wear and corrosion resistance, with polyurethane seals and wipers keeping out contamination. The hardened saddle prevents plunger jamming and slippage under load, a steel top stop ring guards against blow-out through the entire stroke, and a one-piece copper ring supports the rod against eccentric and side loading. A heavy-duty return spring provides fast, consistent retraction, and the cylinder operates in any position, with a baked enamel finish for added corrosion resistance.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 4.00 |
| Oil Capacity (in³) | 12.50 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 7.87 |
| Maximum Heights (in) | 11.87 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 13.000000 |
