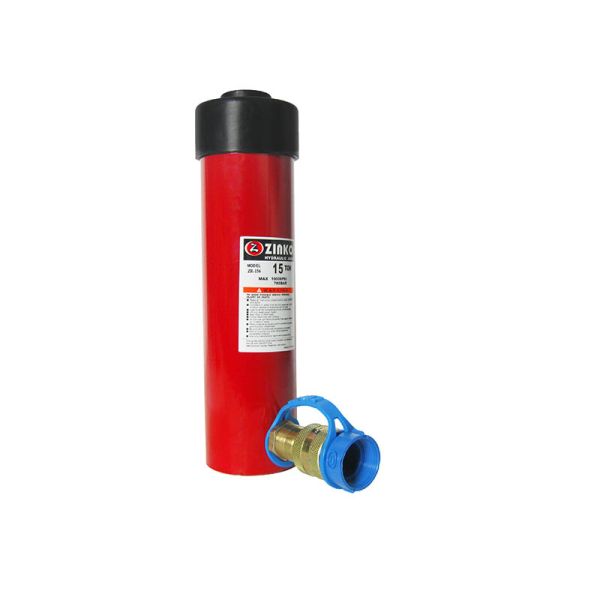

ZR-156, 15 Ton 6" Stroke Heavy Duty Hydraulic Cylinder
At a 6" stroke, the ZR-156 handles 15-ton tasks that call for substantial plunger travel — pressing, lifting, or bending work where the load or fixture requires the cylinder to extend well beyond a short-stroke unit. Like the rest of the ZR series, it's built for shop, agricultural, automotive/truck service, and construction maintenance environments, rated to 10,000 psi (700 bar), and runs on hand, air, or electric pump power.
Construction features a chrome-plated, high-strength alloy steel piston rod resistant to wear and corrosion, along with polyurethane seals and wipers that limit contamination. A hardened saddle keeps the plunger from jamming or slipping under load, while a steel top stop ring protects against blow-out across the full stroke. A one-piece copper ring cradles the rod to absorb eccentric and side loading, and a heavy-duty return spring keeps retraction quick and consistent. The cylinder can be operated in any position and carries a baked enamel finish for corrosion protection.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 6.00 |
| Oil Capacity (in³) | 18.80 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 10.66 |
| Maximum Heights (in) | 16.66 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 17.000000 |
