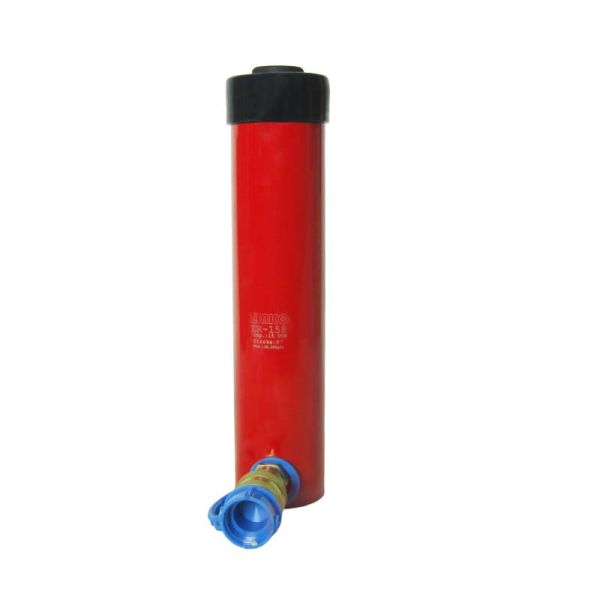

ZR-158, 15 Ton 8" Stroke Heavy Duty Hydraulic Cylinder
The ZR-158 offers an 8" stroke within the 15-ton range, built for applications that demand extended plunger reach — long-travel lifting, pushing, or bending jobs where a shorter cylinder would fall short. It's a general-purpose, industrial cylinder for shop, agricultural, automotive/truck service, and construction maintenance work, rated to 10,000 psi (700 bar) and compatible with hand, air, or electric pumps.
The piston rod is chrome-plated, high-strength alloy steel for corrosion and wear resistance, paired with polyurethane seals and wipers to keep contaminants out. A hardened saddle resists jamming and slippage under load, a steel top stop ring prevents blow-out through the full stroke, and a one-piece copper ring supports the rod against eccentric and side loading. A heavy-duty return spring ensures fast, consistent retraction, the unit runs in any orientation, and a baked enamel finish provides additional corrosion protection.
Special Features:
- Designed with base mounting holes (4/16-18 UNC) for easy mounting on almost any fixture.
- Can be used in any positions.
- Harden saddles keep top bearing and plunger from jamming while the saddle grooves help prevent slipping.
- Baked enamel finish for outstanding corrosion prevention.
- Threaded collar and internal threads withstand full loads for maximum flexibility in fixturing.
- Come with a 3/8" NPT fast flow quick connection coupler and dust cap.
- Collar Plunger thread and base mounting hole provide for easy fixture.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Stroke (in) | 8.00 |
| Oil Capacity (in³) | 25.08 |
| Cylinder Effective Area (in²) | 3.14 |
| Minimum Height (in) | 12.67 |
| Maximum Heights (in) | 20.67 |
| Outside Diameter (in) | 2.71 |
| Weight (lbs) | 20.000000 |
