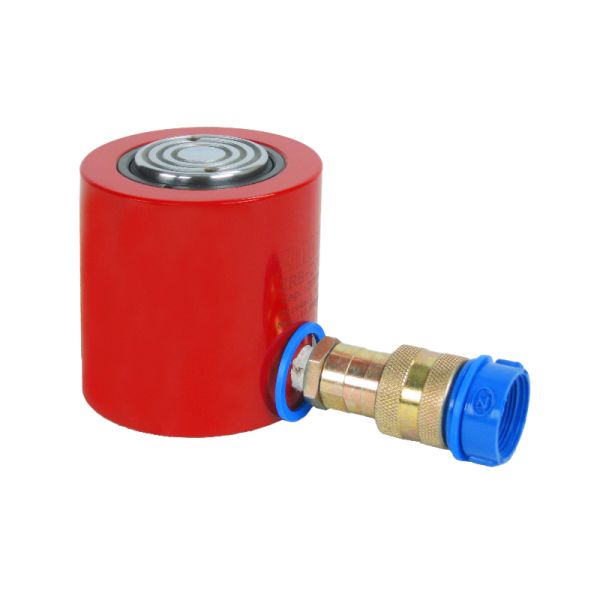

ZRB-201, 20 Ton 1.77" Stroke Low Profile Cylinder
$709.71
In stock
SKU
21B-201
Overview
Designed for tight-clearance lifting, pushing, and clamping tasks, the Zinko ZRB-201 provides 20 tons of single-acting capacity. It features a low-height profile that stands just 3.88" when collapsed, yet achieves a 1.75" working stroke to maximize versatility on the job. Weighing 11 lbs for straightforward transport, the cylinder includes a grooved plunger end equipped with threaded holes to accommodate tilt saddles. It ships complete with a high-flow 3/8" NPT coupler and dust cap. With the appropriate accessories, it connects efficiently to standard hand, air, or electric hydraulic pump setups.
Special Features:
- All models come with 3/8” NPT fast flow quick connection coupler and dust cap.
- Integral handle on 100 ton model for easy carrying.
- Optional adapters make it easy and cost efficient to convert our cylinders from snap-type to threaded-type for your application.
- With appropriated accessories, These Industrial Quality Cylinders can be paired with either hand pumps, air pumps, or electric pumps.
Country of Origin: Taiwan
| Capacity (Tons) | 20 |
|---|---|
| Stroke (in) | 1.77 |
| Oil Capacity (in³) | 7.87 |
| Cylinder Effective Area (in²) | 4.44 |
| Minimum Height (in) | 3.85 |
| Maximum Heights (in) | 5.62 |
| Outside Diameter (in) | 3.62 |
| Weight (lbs) | 12.000000 |
