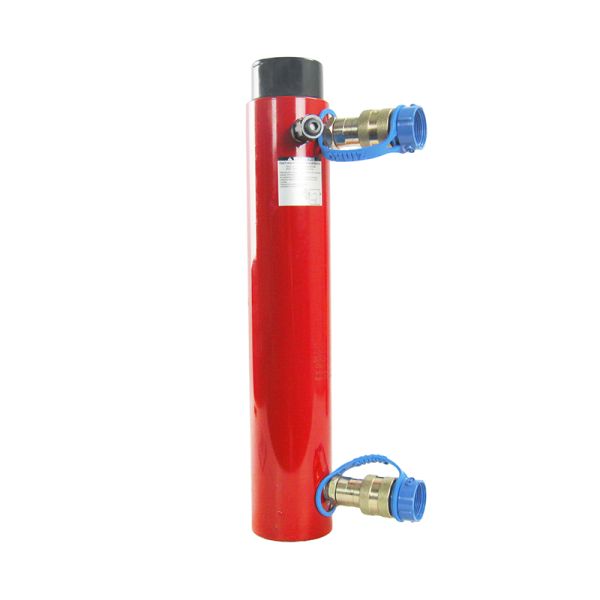

ZRD-1010, 10 Ton 10" Stroke Double Acting Cylinder
The ZRD-1010 is a 10-ton double-acting hydraulic cylinder engineered to deliver greater speed and positive control for high-powered push and pull cycles.
Built with an industrial-grade steel body and designed to interface seamlessly with automated operations, its rugged construction provides reliable, powered retraction alongside exceptional strength, quality, and safety in demanding industrial environments.
This model features a 16.10" collapsed height and a 10.00" stroke that extends to a 26.10" maximum height for applications requiring an extended reach. It comes equipped with standard 3/8" N.P.T. fast-flow quick-connection couplers and dust caps, alongside a grooved hardened removable saddle designed to protect the threaded plunger during both lifting and pressing cycles.
The cylinder includes a threaded collar, internal threads, and dual 5/16-18 UNC base mounting holes. It seamlessly pairs with various Zinko accessories, including optional adapters to transition smoothly between snap-type and threaded-type configurations. An optional base is also available for added stability and a wider footprint on uneven or soft surfaces.
Special Features:
- The double-acting is designed to produce greater speed and positive control for applications requiring an extra measure of strength, quality, reliability, and safety.
- Interfaces with automated operations while providing both powered push and pull cycles.
- Standard models come with a threaded collar along with a threaded plunger.
- The removable hardened saddles protect the plunger during lifting and pressing.
Country of Origin: Taiwan
| Capacity (Tons) | 10 |
|---|---|
| Stroke (in) | 10 |
| Oil Capacity - Advance (in³) | 22.45 |
| Oil Capacity - Return (in³) | 7.45 |
| Cylinder Effective Area - Advance (in²) | 2.24 |
| Cylinder Effective Area - Return (in²) | 0.74 |
| Max. Cylinder Capacity - Advance (Tons) | 10 |
| Max. Cylinder Capacity - Return (Tons) | 3 |
| Minimum Height (in) | 16.10 |
| Maximum Heights (in) | 26.10 |
| Outside Diameter (in) | 2.88 |
| Weight (lbs) | 30.000000 |
