ZRM-020, 20 Ton 0.44" Stroke Super Low Cylinder
$749.83
In stock
SKU
21M-020
Overview

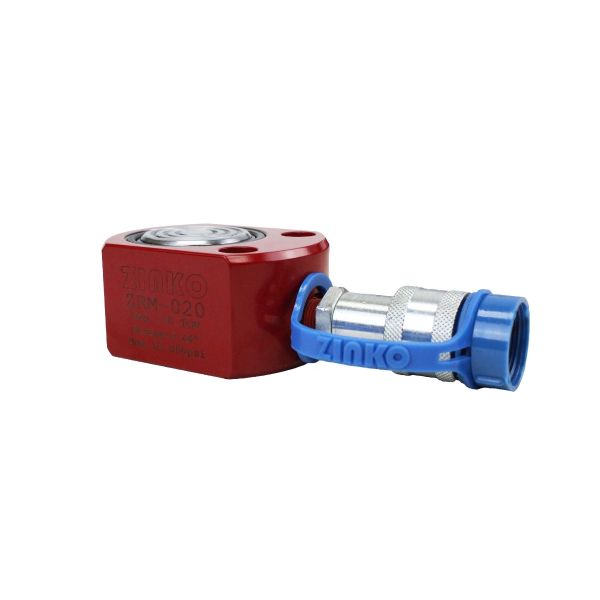

The low-profile Zinko ZRM-020 provides 20 tons of lifting capacity while maintaining a compact, portable footprint. This single-acting cylinder collapses to 2.00" and has a 0.44" stroke, allowing it to fit into tight clearance areas where standard jacks cannot. Weighing 7 lbs and designed to operate in any orientation, it includes integrated base mounting holes for fixture attachment and a grooved plunger end that grips slick surfaces securely without the need for a separate saddle. The cylinder comes standard with a 3/8" NPT fast-flow coupler and a protective dust cap.
Special Features:
- Light weight and rugged.
- Built for power & mobility.
- Designed for use in all positions.
- Come with a 3/8" NPT fast flow coupler.
- Mounting holes allow easy mounting on to almost any fixture.
- Grooved plunger ends do not require saddle.
Country of Origin: Taiwan
| Capacity (Tons) | 20 |
|---|---|
| Stroke (in) | 0.44 |
| Oil Capacity (in³) | 1.95 |
| Cylinder Effective Area (in²) | 4.44 |
| Minimum Height (in) | 2.00 |
| Maximum Heights (in) | 2.44 |
| Outside Diameter (in) | 4.00 x 3.00 |
| Weight (lbs) | 7.000000 |
