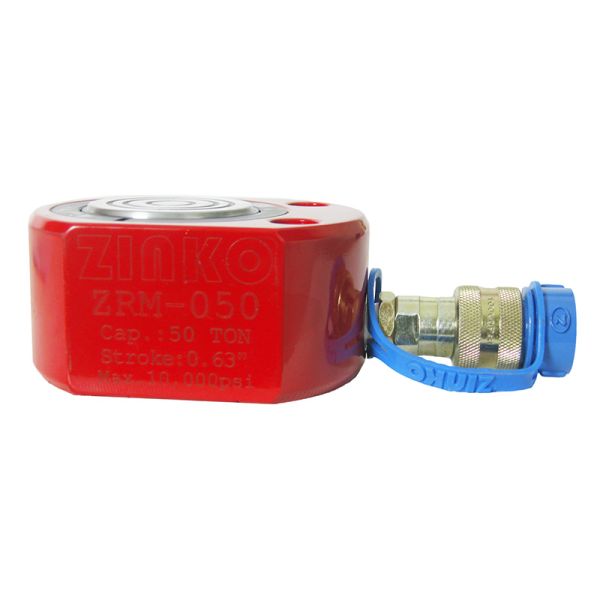

ZRM-050, 50 Ton 0.63" Stroke Super Low Cylinder
$1,010.57
In stock
SKU
21M-050
Overview
When you need 50 tons and have very little room, the ZRM-050 is ready. Collapsing to only 2.63" and extending 0.63" to 3.25", this lightweight, rugged cylinder works in all positions. The grooved plunger end grips heavy or slick loads to help keep it from sliding under pressure, and mounting holes make the ZRM-050 easy to secure on almost any fixture. At 15 lbs, this is a compact way to bring serious capacity to the job. A 3/8" NPT fast-flow coupler and dust cap are included.
Special Features:
- Light weight and rugged.
- Built for power & mobility.
- Designed for use in all positions.
- Come with a 3/8" NPT fast flow coupler.
- Mounting holes allow easy mounting on to almost any fixture.
- Grooved plunger ends do not require saddle.
Country of Origin: Taiwan
| Capacity (Tons) | 50 |
|---|---|
| Stroke (in) | 0.63 |
| Oil Capacity (in³) | 6.04 |
| Cylinder Effective Area (in²) | 9.62 |
| Minimum Height (in) | 2.59 |
| Maximum Heights (in) | 3.22 |
| Outside Diameter (in) | 5.50 x 4.50 |
| Weight (lbs) | 16.000000 |
