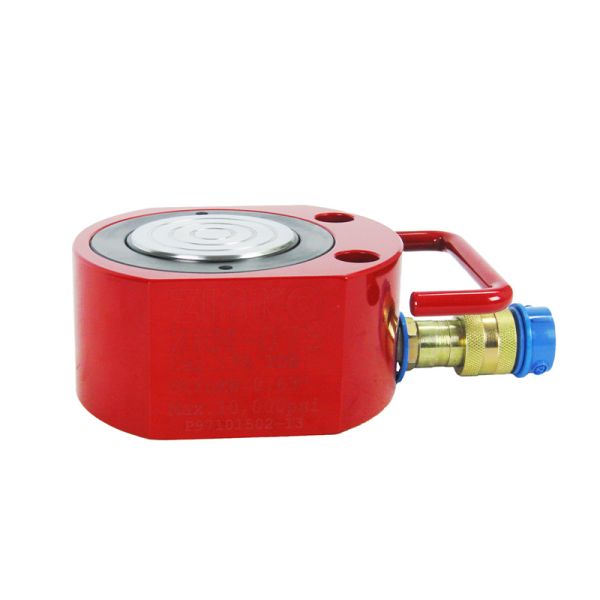

ZRM-075, 75 Ton 0.63" Stroke Super Low Cylinder
$1,404.00
In stock
Only 1 left
SKU
21M-075
Overview
The Zinko ZRM-075 provides 75 tons of single-acting lifting capacity for high-tonnage applications with restricted vertical clearance. This cylinder collapses to a minimum height of 3.11" and extends to 3.74" via a 0.63" stroke, allowing operators to position heavy force precisely in narrow gaps. Weighing 27 lbs, the unit is designed to function effectively at any angle and features integrated base mounting holes for fast anchoring to specialized work fixtures. Its grooved plunger end grips heavy or slick loads securely to prevent slippage under intense pressure, eliminating the need for a separate saddle. Each cylinder comes equipped with a standard 3/8" NPT fast-flow coupler and a protective dust cap.
Special Features:
- Light weight and rugged.
- Built for power & mobility.
- Designed for use in all positions.
- Come with a 3/8" NPT fast flow coupler.
- Mounting holes allow easy mounting on to almost any fixture.
- Grooved plunger ends do not require saddle.
Country of Origin: Taiwan
| Capacity (Tons) | 75 |
|---|---|
| Stroke (in) | 0.63 |
| Oil Capacity (in³) | 10.00 |
| Cylinder Effective Area (in²) | 15.90 |
| Minimum Height (in) | 3.11 |
| Maximum Heights (in) | 3.74 |
| Outside Diameter (in) | 6.50 x 5.50 |
| Weight (lbs) | 27.000000 |
