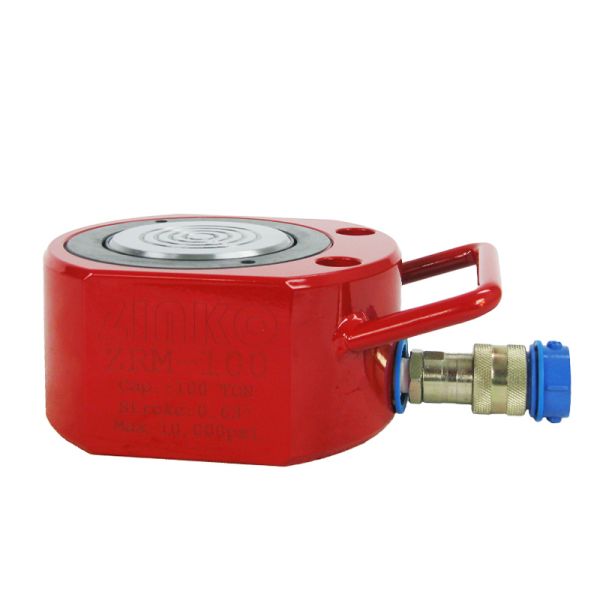

ZRM-100, 100 Ton 0.63" Stroke Super Low Cylinder
$1,862.23
In stock
Only 1 left
SKU
21M-100
Overview
As the highest-capacity model in the series, the Zinko ZRM-100 delivers 100 tons of single-acting force while maintaining a remarkably low-profile stance. Standing just 3.34" tall when collapsed, it provides a precise 0.63" stroke to fit clearance zones that standard high-tonnage jacks cannot clear. The 34 lb cylinder operates reliably in any orientation, utilizing built-in base mounting holes for direct fixture attachment and a specialized grooved plunger end that locks onto massive loads safely without an independent saddle. A high-flow 3/8" NPT coupler and protective dust cap come standard to allow quick setup and maintain system cleanliness.
Special Features:
- Light weight and rugged.
- Built for power & mobility.
- Designed for use in all positions.
- Come with a 3/8" NPT fast flow coupler.
- Mounting holes allow easy mounting on to almost any fixture.
- Grooved plunger ends do not require saddle.
Country of Origin: Taiwan
| Capacity (Tons) | 100 |
|---|---|
| Stroke (in) | 0.63 |
| Oil Capacity (in³) | 12.39 |
| Cylinder Effective Area (in²) | 19.63 |
| Minimum Height (in) | 3.34 |
| Maximum Heights (in) | 3.97 |
| Outside Diameter (in) | 7.00 x 6.00 |
| Weight (lbs) | 34.000000 |
