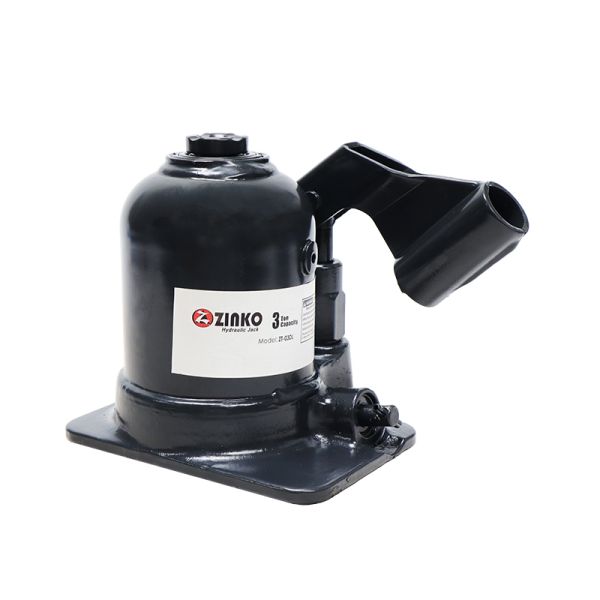

ZT-03DL, 3 Ton Telescoping Bottle Jack ( 2 Stage )
$245.31
Out of stock
SKU
83-03DL
Overview
The Zinko ZT-03DL is a 3-ton telescoping hydraulic bottle jack engineered to deliver extended lift travel within a compact spatial footprint. Utilizing a dual-stage telescoping ram, it operates from a 5.55" minimum starting height up to an extended 15.78" maximum height. Featuring an integrated safety overload bypass valve and a leak-resistant welded steel chassis, this 10 lb unit maintains full operational capacity in both vertical and horizontal planes across temperature environments ranging from -40°F to 140°F.
Special Features:
- Safety valve designed to protect the hydraulic system from overload damage
- Welded steel construction for added strength while preventing oil leakage
- Adaptable to a variety of environments between -40°F ~ 140°F
- Models with additional screw extension offer increased use of the stroke
- Can be used in both vertical and horizontal positions with lifting capacity
Country of Origin: Taiwan
| Capacity (Tons) | 3 |
|---|---|
| Minimum Height (in) | 5.55 |
| Maximum Heights (in) | 15.78 |
| Ram Lift (in) | 10.23 |
| Screw Extension (in) | --- |
| Base Area (in) | 6.18 x 5.35 |
| Weight (lbs) | 11.000000 |
| Pump Direction | Vertical |
