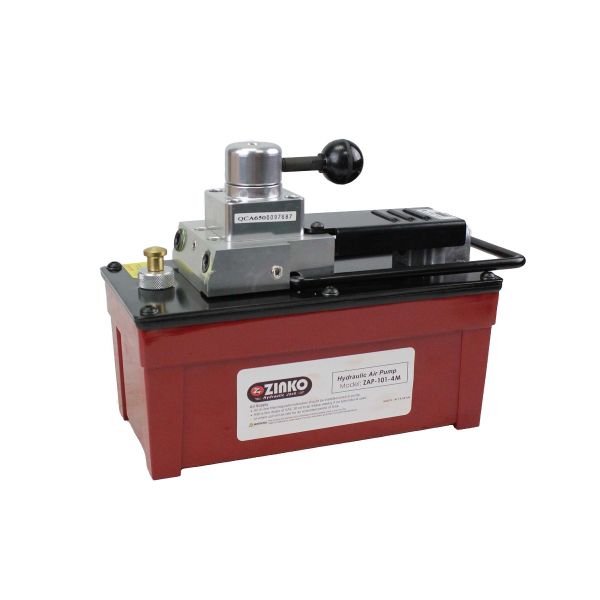

ZAP-101-4M, 100 Cu. In. Air Pump With 4 Way 3 Position Valve
$856.29
In stock
SKU
22-101-4M
Overview
The Zinko ZAP-101-4M is a high-performance, 10,000 PSI air-over-hydraulic pump equipped with an integrated four-way, three-position manual directional valve. This valving setup makes the unit highly versatile, providing the precise control needed to power double-acting hydraulic cylinders and presses in both fixed shop environments and mobile field applications. Powered by an all-metal air motor operating on an 80–140 PSI input range, the single-speed system delivers a high-volume 77 cubic inch per minute no-load flow rate that shifts to 13 cubic inches per minute under full load.
The pump features a standard 3/8" NPT fluid port layout and incorporates a built-in pressure relief valve alongside dedicated hydraulic pickup, hydraulic output, and air inlet filters to prevent line contamination. Built for reliable service with a standard 98 cubic inch usable oil capacity, this 25 lb unit features a durable anodized aluminum reservoir. Like the rest of the work-proven ZAP lineup, this model is fully serviceable via compatible repair kits sold separately.
Special Features:
- Design based on work proven ZAP series pump.
- Pressure relief valve, hydraulic pickup filter, hydraulic output filter, and air inlet filter protect pump and hydraulic components from damage.
- Can be used anywhere compressed air is available.
- Manufactured for years of trouble free service and can be completely rebuilt with Zinko rebuild kits.
- High fluid output utilizing minimal air input is made possible with the usage of quality lightweight internal components engineered to maximize flow rate, outperforming competitor’s pumps almost two to one.
- 4M series pumps are available in many different configurations including various sized aluminum, steel, and polyethylene reservoirs making these pumps capable of powering many types of hydraulic components.
- It is highly recommended that an air filter, regulator, and lubricator are used in conjunction with all of Zinko’s air powered products. P/N: FRL-212N.
Country of Origin: Taiwan
| Oil Capacity (in³) | 98 |
|---|---|
| Pressure Rating (psi) | 10,000 |
| Output Flow Rate - No Load (in³/min) | 77 |
| Output Flow Rate - Load (in³/min) | 13 |
| Air Pressure Range (psi) | 40-140 |
| Air Consumption (scfm) | 10 |
| Sound Rate (dba) | 85 |
| Port Size (NPT) | 3/8" |
| Weight (lbs) | 60.000000 |
