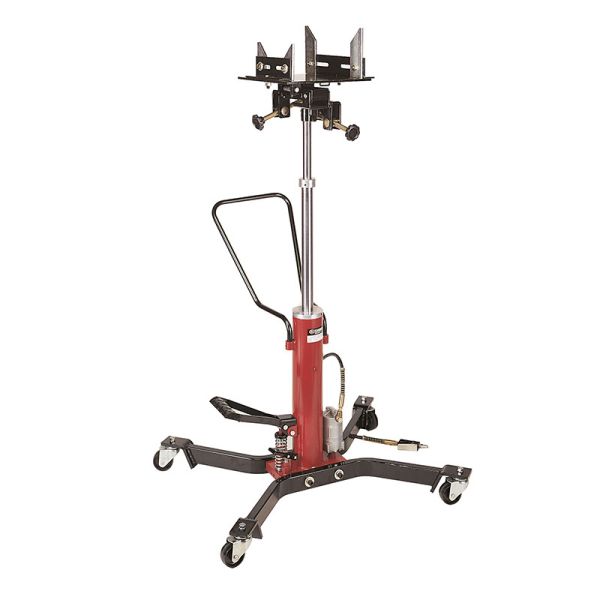

ZAML-502, 0.5 Ton Air Hydraulic Telescopic Type Transmission Jack
The Zinko ZAML-502 air hydraulic vertical transmission jack features a high-clearance design optimized for under-hoist vehicle servicing. Built to support up to 0.5 tons of capacity, this specialized unit features a dual-stage telescopic ram that establishes a low 33.25" starting height while smoothly extending to a 71" maximum reach. Precision lifting is driven by an efficient air pump running on standard shop air, alongside a manual foot pump for dual-function operational versatility. While a standard saddle is included, an upgraded fully adjustable head assembly with corner brackets and a safety constraint belt is available as an option, while its four-wheel swivel caster configuration guarantees effortless positioning and reliable stability across the service bay.
Special Features:
- Dual Performance - Can be used manually or by air actuated operation.
- Safety bypass and overload system prevents jack from being used beyond its rated capacity.
- Foot operated release valve frees operator's hands to guide the load.
- Special 2-stage design enables work from lower pickup point with higher reach capacity.
- Fully adjustable universal saddle with adjustable corner brackets and safety chain.
- Equipped with handle, easy to move in all directions.
- Swivel caster wheels are for easy moving and positioning.
- Chromed telescopic rams and the strong leg design provides maximum stability.
Country of Origin: Taiwan
| Capacity (Tons) | 0.5 |
|---|---|
| Minimum Height (in) | 33.25 |
| Maximum Heights (in) | 71.00 |
| Power Lift (in) | 37.75 |
| Chassis Length (in) | 31.00 |
| Chassis Width (in) | 37.00 |
| Saddle Cradle (degree) | 30° |
| Side Title (degree) | 15° |
| Weight (lbs) | 180.000000 |
