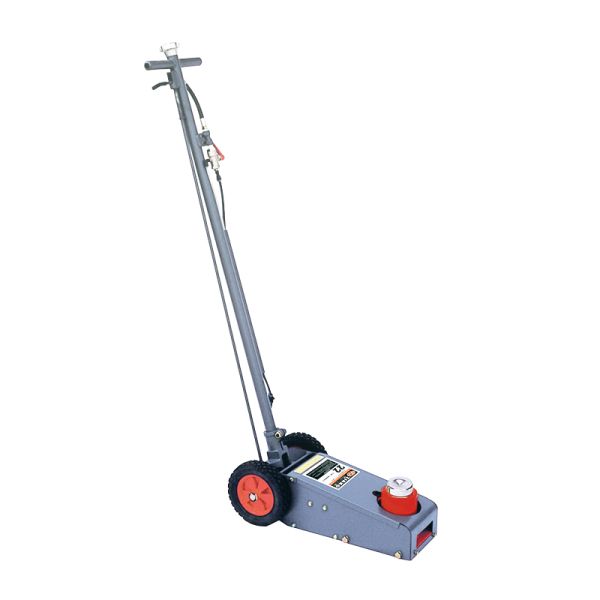

ZATJ-220DL, 22 Ton Air Hydraulic Truck Jack (2 Stage)
The Zinko ZATJ-220DL heavy-duty air hydraulic truck jack combines rigorous Japanese manufacturing standards with a dual-stage telescopic ram optimized for low-clearance commercial fleets and transit buses.
This low-profile jack drops down to a minimal 5.31" starting height to fit beneath vehicles with highly restricted pickup points, extending smoothly through both stages to deliver its full 22 ton lifting capacity up to a 9.24" maximum reach. Its high-speed, quiet pneumatic motor runs efficiently on standard 102-145 psi shop air to quickly raise heavy structural loads with minimal effort.
Outfitted with dual rubber-tired transport wheels, an adjustable three-position locking T-handle, and an automatic overload bypass safety valve, it delivers dependable, leak-free performance for fast-paced industrial workshops and fleet service bays.
Special Features:
- Lightweight and built for heavy-duty use.
- All-steel welded construction makes our ZATJ reliable, long lasting and leak free.
- The built-in safety valve prevents use beyond the rated capacity and lifting limit.
- Air pump allows fast quiet operation.
- An extension screw for fine adjustment is included. Extension adapters are also available separately.
- When connected to standard shop air pressure providing 102-145 psi, these jacks can quickly obtain rated lift capacity with air-actuated operation.
- The two large rubber-tire wheels and 3 position locking T-handle make these jacks easy to fit in many lifing situations.
Country of Origin: Japan
| Capacity (Tons) | 22 |
|---|---|
| Minimum Height (in) | 5.31 |
| Hydraulic Lift (in) | 3.93 |
| Maximum Heights (in) | 9.24 |
| Chassis Length (in) | 23.62 |
| Chassis Width (in) | 12.40 |
| Height of Frame (in) | 6.69 |
| Operating (psi) | 102-145 |
| Screw Extension (in) | --- |
| Weight (lbs) | 116.000000 |
