ZATJ-350, 35 Ton Air Hydraulic Truck Jack

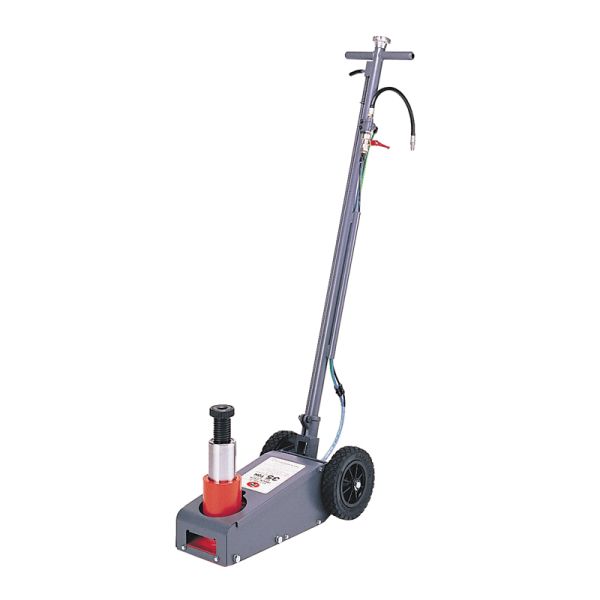

The Zinko ZATJ-350 heavy-duty air hydraulic truck jack pairs dependable Japanese manufacturing standards with high-capacity performance for commercial fleets, buses, and heavy agricultural machinery.
Built with a compact 23.62" structural steel chassis, this 35 ton truck jack maneuvers tightly into demanding lifting situations, operating from an 8.26" minimum height to a 14.94" maximum reach. It relies on a fast, low-noise air pump requiring standard 102-145 psi shop air to quickly obtain its rated lifting capacity, while an integrated 2.75" manual extension screw allows for easy, precise height adjustments.
Equipped with two large rubber-tired wheels, a three-position locking T-handle, and an automatic overload safety valve, it brings steady, long-term durability to rigorous mobile and shop-based heavy servicing.
Special Features:
- Lightweight and built for heavy-duty use.
- All-steel welded construction makes our ZATJ reliable, long lasting and leak free.
- The built-in safety valve prevents use beyond the rated capacity and lifting limit.
- Air pump allows fast quiet operation.
- An extension screw for fine adjustment is included. Extension adapters are also available separately.
- When connected to standard shop air pressure providing 102-145 psi, these jacks can quickly obtain rated lift capacity with air-actuated operation.
- The two large rubber-tire wheels and 3 position locking T-handle make these jacks easy to fit in many lifing situations.
Country of Origin: Japan
| Capacity (Tons) | 35 |
|---|---|
| Minimum Height (in) | 8.26 |
| Hydraulic Lift (in) | 3.93 |
| Maximum Heights (in) | 14.94 |
| Chassis Length (in) | 23.62 |
| Chassis Width (in) | 12.40 |
| Height of Frame (in) | 6.69 |
| Operating (psi) | 102-145 |
| Screw Extension (in) | 2.75 |
| Weight (lbs) | 130.000000 |
