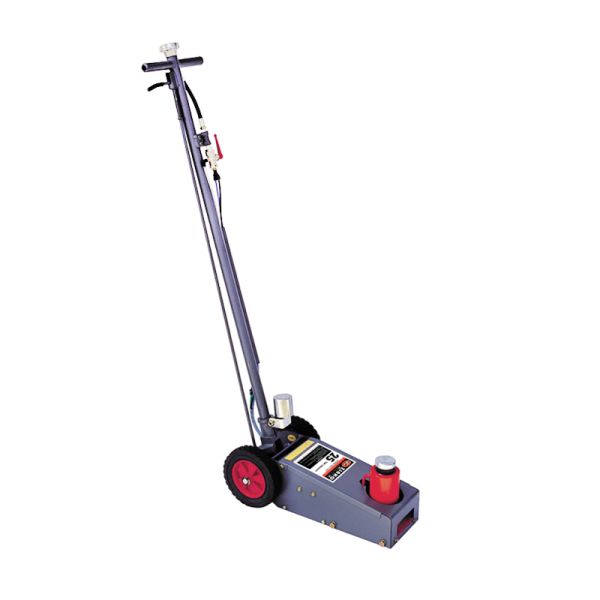

ZATJ-250, 25 Ton Air Hydraulic Truck Jack
The Zinko ZATJ-250 heavy-duty air hydraulic truck jack combines robust Japanese manufacturing standards with high-tonnage lifting capabilities optimized for commercial fleets, transit buses, and heavy agricultural equipment.
This 25 ton truck jack is engineered around a compact 23.62" chassis to slip easily into restricted lifting zones, operating from an 8.26" starting height to a 15.93" maximum extension. A low-noise, high-speed pneumatic motor utilizes 102-145 psi shop air to elevate heavy loads rapidly, supplemented by a 3.54" integrated screw extension for fast, incremental height customization.
Outfitted with dual rubber-tired transport wheels, a three-position adjustable T-handle, and a built-in overload protection valve, it delivers reliable, long-lasting performance for intensive shop maintenance or roadside service.
Special Features:
- Lightweight and built for heavy-duty use.
- All-steel welded construction makes our ZATJ reliable, long lasting and leak free.
- The built-in safety valve prevents use beyond the rated capacity and lifting limit.
- Air pump allows fast quiet operation.
- An extension screw for fine adjustment is included. Extension adapters are also available separately.
- When connected to standard shop air pressure providing 102-145 psi, these jacks can quickly obtain rated lift capacity with air-actuated operation.
- The two large rubber-tire wheels and 3 position locking T-handle make these jacks easy to fit in many lifing situations.
Country of Origin: Japan
| Capacity (Tons) | 25 |
|---|---|
| Minimum Height (in) | 8.26 |
| Hydraulic Lift (in) | 4.13 |
| Maximum Heights (in) | 15.93 |
| Chassis Length (in) | 23.62 |
| Chassis Width (in) | 12.40 |
| Height of Frame (in) | 6.69 |
| Operating (psi) | 102-145 |
| Screw Extension (in) | 3.54 |
| Weight (lbs) | 130.000000 |
