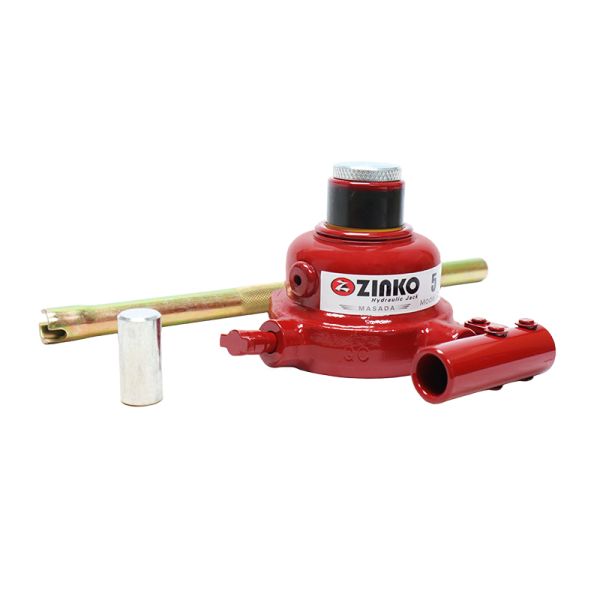

ZMJ-5C, 5 Ton Mini Bottle Jack, Compact (min ht. 2.36")
The ZMJ-5C mini bottle jack delivers high-capacity lifting and alignment capabilities within an ultra-low profile.
Its rugged design features a fully welded base that enhances structural integrity and eliminates potential leak paths under heavy loads. Built with a heat-treated cylinder, this model provides excellent corrosion resistance and stands up to demanding industrial environments. The jack features a super-low starting clearance of 2.36" and reaches a maximum height of 3.15" with a 0.78" ram stroke, making it ideal for micro-clearance leveling and machinery centering. To extend its versatility across various shop configurations, it includes interchangeable saddle adapters to provide a secure interface for different lifting surfaces. Operating reliably in both upright and horizontal positions, this 5-ton compact solution brings precise, heavy-duty power to tight, hard-to-reach spaces.
Manufactured in Japan under strict quality standards.
Special Features:
- Compact, and powerful with a very low profile
- Small size is ideal for centering heavy equipment or making fine adjustments
- Can be used in conjunction with a mechanical gear puller to create a hydraulic puller with over 5 ton capacity
- Can also be used as a spreader to apply force with just over 2-1/2" of clearance needed
- Use in either an upright or horizontal position
Country of Origin: Japan
| Capacity (Tons) | 5 |
|---|---|
| Minimum Height (in) | 2.36 |
| Maximum Heights (in) | 3.15 |
| Ram Lift (in) | 0.78 |
| Saddle Diameter (in) | Ø 1.10 |
| Base Area (in) | 3.70 x 3.50 |
| Weight (lbs) | 5.000000 |
