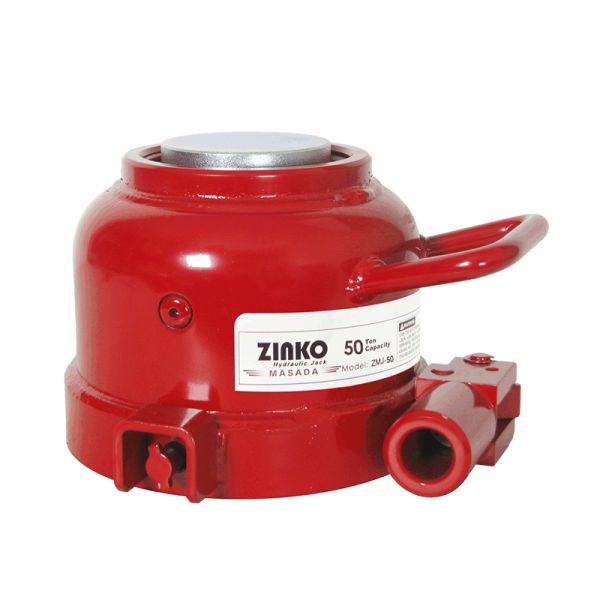

ZMJ-50, 50 Ton Mini Bottle Jack
The ZMJ-50 mini bottle jack provides 50 tons of lifting capacity within an incredibly compact and low-profile design.
It features a fully welded base that eliminates potential leak paths, providing maximum structural stability when supporting extreme weights. The inner cylinder undergoes an advanced heat-treatment process to maximize resistance against corrosion and premature wear, ensuring the jack remains reliable in heavy industrial environments.
This model provides an ultra-low starting height of 5.51" and delivers a 1.18" hydraulic stroke to achieve a maximum height of 6.69", providing an efficient solution for micro-clearance leveling. Equipped with a robust 3.15" diameter saddle, it ensures an evenly distributed contact surface during demanding industrial lifts. Capable of functioning in both vertical and horizontal positions, this compact 50-ton solution can also be paired with a mechanical gear puller or used as a spreader to provide immense power in restricted spaces.
Manufactured in Japan under strict quality standards.
Special Features:
- Compact, and powerful with a very low profile
- Small size is ideal for centering heavy equipment or making fine adjustments
- Can be used in conjunction with a mechanical gear puller to create a hydraulic puller with over 5 ton capacity
- Can also be used as a spreader to apply force with just over 2-1/2" of clearance needed
- Use in either an upright or horizontal position
Country of Origin: Japan
| Capacity (Tons) | 50 |
|---|---|
| Minimum Height (in) | 5.51 |
| Maximum Heights (in) | 6.70 |
| Ram Lift (in) | 1.18 |
| Saddle Diameter (in) | Ø 3.15 |
| Base Area (in) | 7.0 x 6.85 |
| Weight (lbs) | 42.000000 |
