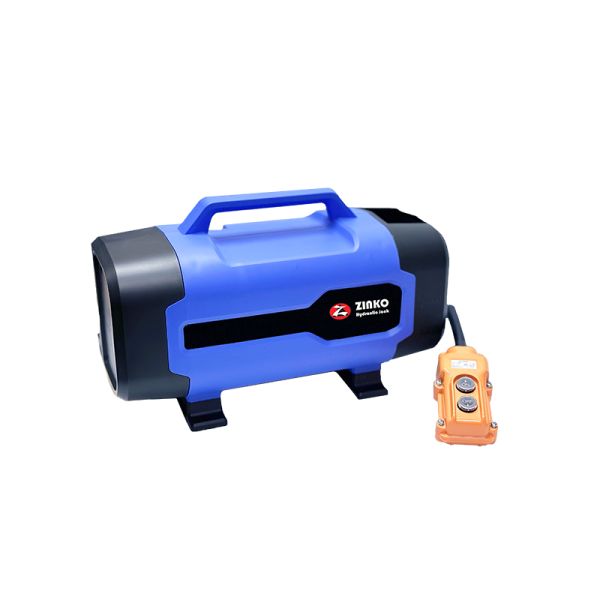

ZPE-35DX-IN, Compact Portable Electric Pump, 1/3 Hp, Electric 100V, 60 in³ Oil Tank
$3,582.86
In stock
Only 1 left
SKU
24-35DX-IN
Overview
The ZPE-35DX-IN is a compact, two-stage electric pump built for jobs where portability and control matter as much as pressure. At 24 lbs, its 1/3 HP, 100/110V motor drives a 60 in³ reservoir to a maximum output of 10,000 psi. Compared to Zinko's ZPE-35RH line, the two-stage design delivers roughly 30% more power at low pressures and 50% more at high pressures, cutting energy loss and keeping oil temperatures down. Manufactured in Japan, the pump is fully sealed and can be operated in any orientation on a stable surface.
Special Features:
- The 2-stage pump provides 30% more power at low pressures, and 50% more power at high pressures compared to our
ZPE-35RH line. Fully optimizing the pump's performance means reduced energy loss, and prevents the oil temperature from rising. - Designed with a fully sealed tank, this pump can be operated from all directions (diagonal, upside down, vertical, horizontal) as long as it is on a stable surface.
- Integrated valve allows for immediate stops, allowing the user to retain pressure while advancing or retracting the hydraulic cylinder.
- Improved drip-proofing and sound-proofing, which enhances safety during operation.
- With a lightweight design, this pump can be easily carried around; an integrated handle allows for comfortable and convenient transportation, while the built in side pocket allows for easy switch storage.
Country of Origin: Japan
| Oil Capacity (in³) | 60 |
|---|---|
| Usable Oil Capacity (in³) | 48 |
| AC (v) | 110 |
| Output (HP) | 1/3 |
| Revolution (rpm) | 2000 |
| Max Press 1st Stage - Low (psi) | 435 |
| Max Press 2nd Stage - High (psi) | 10000 |
| Output 1st Stage - Low (in³/min) | 152 |
| Output 2nd Stage - High (in³/min) | 18 |
| Weight (lbs) | 25.000000 |
