ZPK-20, 20 Ton Portable Set

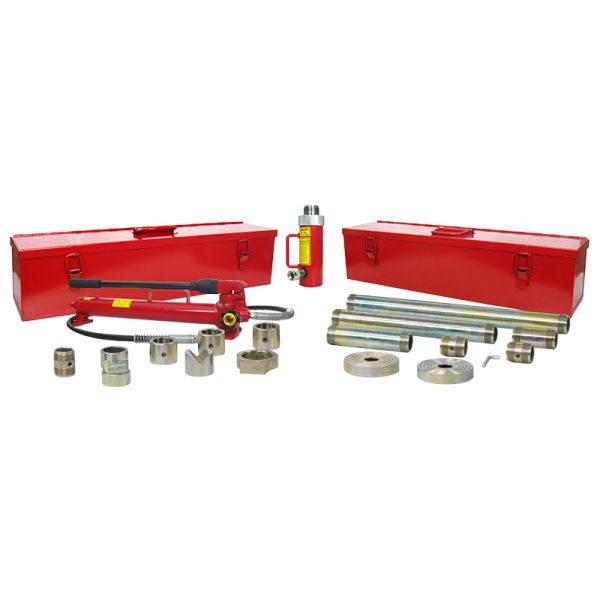

The ZPK-20 is a complete 20-ton hydraulic set for heavy-duty collision repair, with the pump, ram, and attachments you need to start work in one durable steel carrying case.
It pairs a ZHP-42 two-speed hand pump and 6' hose with a 20-ton ram that has a 5" stroke. The pump's first speed brings the ram quickly up to the load, and the second speed delivers the power stroke. Extension tubes up to 27-1/2" long add reach, while the 6-1/2" diameter base and two 3-1/2" saddles give the ram a wide, stable footing at both ends.
A toe lift, V head, wedge head, spreader plunger toe, spreader ram toe, and 2-3/4" flex head change the contact point for different pushing and spreading jobs, and two threaded couplers connect the components. Together, these pieces let you configure one ram for a wide range of repair set-ups, rather than being limited to a single job. The complete kit weighs 160 lbs.
Special Features:
- The collision repair kits snap-together components make for quick set-ups and come in 4-, 10- and 20-ton versions.
- Designed for quick and easy use where portable hydraulic power is needed.
- Built-in overload system assures maximum protection of operator and equipment.
- High strength heavy wall tubing reinforces parts and extends the life of the tools.
- Two-speed pump quickly raises ram to load, while the secondary pump provides power stroke.
- Choose from two steel carrying cases.
Country of Origin: Taiwan
| Capacity (Tons) | 20 |
|---|---|
| Kits Includes: | 1. Hydraulic Pump (ZHP-42: 2-speed) 2. Hose & 3/8" Coupler (195112) 3. 20 Ton Ram 5" Stroke (ZAR-205T) 4. 3-1/2" Diameter Saddle (x2) 5. Extension Tubes: (3" (x2), 5", 10", 20", "27.5") 6. Threader Coupler (x2) 7. Toe Lift 8. "V" Head 9. Wedge Head 10. Spreader Plunger Toe 11. Spreader Ram Toe 12. 2-3/4" Flex Head 13. 6-1/2" Diameter Base 14. Stell Carrying Case |
| Weight (lbs) | 175.000000 |
