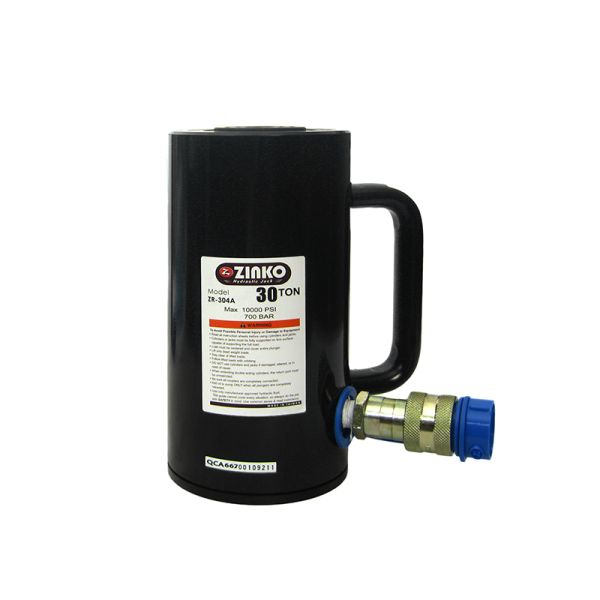

ZR-304A, 30 Ton 4" Stroke Aluminum Single Acting Cylinder
$1,513.54
In stock
Only 1 left
SKU
21A-304
Overview
The Zinko ZR-304A Aluminum Hydraulic Cylinder brings a 4.00" stroke and 30-ton capacity to demanding field applications. Weighing 21 pounds, this rugged tool strikes an ideal balance between portable handling and extended reach, offering an extended height of 13.03" from a 9.09" collapsed profile. The premium heat-treated aluminum alloy construction stands up to heavy wear while maintaining a lightweight footprint on the job site. Equipped with a steel base plate, grooved saddle, and standard fast-flow quick-connection couplers, it integrates seamlessly with any 10,000 psi air-over-hydraulic pump system.
Special Features:
- All models come with 3/8" NPT fast-flow quick-connection couplers and dust caps.
- Made of the strongest aluminum alloys and heat-treated to provide a maximum combination of strength and fracture resistance.
- Grooved saddles for stability.
- Steel base-plated for increased durability.
- Optional valve to control cylinder speed can also be used as shut off valve for temporary load holding.
- Optional aluminum base provides extra support and stability for the 50 ton cylinders.
Country of Origin: Taiwan
| Capacity (Tons) | 30 |
|---|---|
| Stroke (in) | 4.00 |
| Oil Capacity (in³) | 26 |
| Minimum Height (in) | 9.09 |
| Maximum Heights (in) | 13.03 |
| Outside Diameter (in) | 3.93 |
| Cylinder Bore Diameter (in) | 2.95 |
| Plunger Diameter (in) | 2.36 |
| Base to Adv. Port (in) | 1.29 |
| Saddle Diameter (in) | 1.57 |
| Weight (lbs) | 21.000000 |
