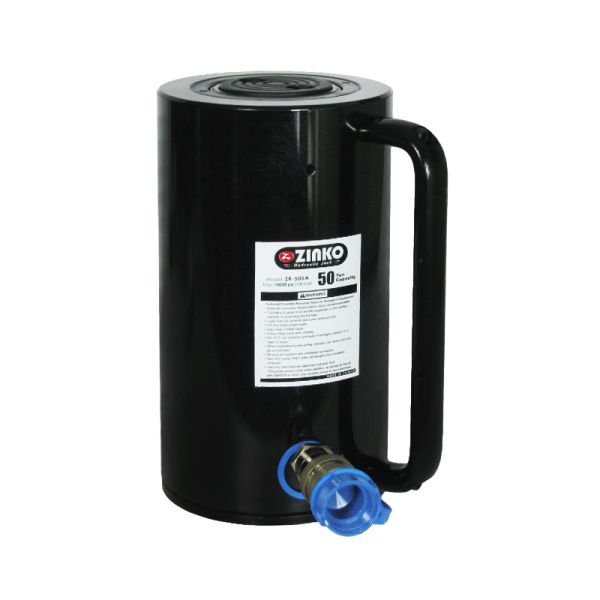

ZR-506A, 50 Ton 6.25" Stroke Aluminum Single Acting Cylinder
$1,789.71
In stock
SKU
21A-506
Overview
The Zinko ZR-506A Aluminum Hydraulic Cylinder maximizes the capability of our 50-ton range with a long 6.25" stroke. Reaching a full extended height of 17.16" from an 11.25" collapsed setup, this heavy-lifting tool handles deeper configurations while remaining highly portable at 35 pounds. It relies on heat-treated aluminum alloy composition for premium fracture resistance under peak pressures. To safeguard positioning in demanding conditions, the unit is fully compatible with the optional aluminum support base, or it can be secured with the standard grooved saddle and steel base plate. It pairs effortlessly with any 10,000 psi air-over-hydraulic pump using high-flow quick-connection couplers.
Special Features:
- All models come with 3/8" NPT fast-flow quick-connection couplers and dust caps.
- Made of the strongest aluminum alloys and heat-treated to provide a maximum combination of strength and fracture resistance.
- Grooved saddles for stability.
- Steel base-plated for increased durability.
- Optional valve to control cylinder speed can also be used as shut off valve for temporary load holding.
- Optional aluminum base provides extra support and stability for the 50 ton cylinders.
Country of Origin: Taiwan
| Capacity (Tons) | 50 |
|---|---|
| Stroke (in) | 6.25 |
| Oil Capacity (in³) | 64 |
| Minimum Height (in) | 11.25 |
| Maximum Heights (in) | 17.16 |
| Outside Diameter (in) | 5.11 |
| Cylinder Bore Diameter (in) | 3.74 |
| Plunger Diameter (in) | 3.15 |
| Base to Adv. Port (in) | 1.18 |
| Saddle Diameter (in) | 1.96 |
| Weight (lbs) | 35.000000 |
