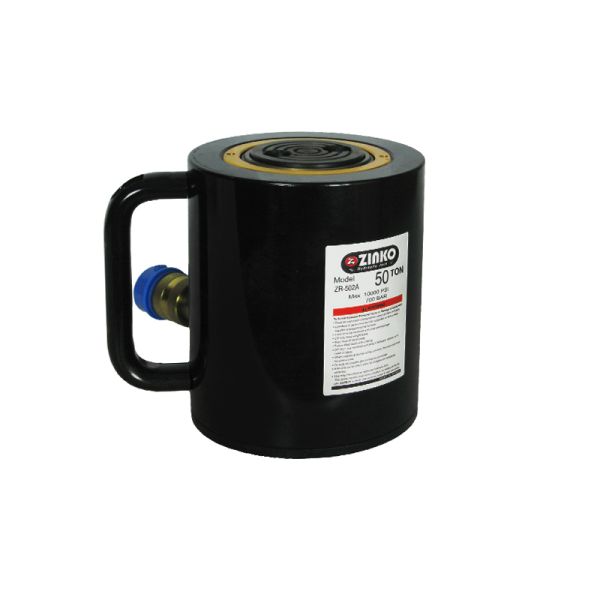

ZR-502A, 50 Ton 2.25" Stroke Aluminum Single Acting Cylinder
$1,397.83
In stock
Only 2 left
SKU
21A-502
Overview
The Zinko ZR-502A Aluminum Hydraulic Cylinder introduces a powerful 50-ton lifting capacity in a compact, field-ready design. This model features a 2.25" stroke, a 7.32" collapsed height, and a weight of 25 pounds, allowing for high-tonnage performance without excessive bulk. It pairs perfectly with any 10,000 psi air-over-hydraulic pump and utilizes premium heat-treated aluminum alloys for superior strength. For added flexibility on uneven surfaces, it can be paired with an optional aluminum base plate that provides extra support and stability. Standard features include a grooved saddle, a steel base plate, and high-flow quick-connection couplers.
Special Features:
- All models come with 3/8" NPT fast-flow quick-connection couplers and dust caps.
- Made of the strongest aluminum alloys and heat-treated to provide a maximum combination of strength and fracture resistance.
- Grooved saddles for stability.
- Steel base-plated for increased durability.
- Optional valve to control cylinder speed can also be used as shut off valve for temporary load holding.
- Optional aluminum base provides extra support and stability for the 50 ton cylinders.
Country of Origin: Taiwan
| Capacity (Tons) | 50 |
|---|---|
| Stroke (in) | 2.25 |
| Oil Capacity (in³) | 21 |
| Minimum Height (in) | 7.32 |
| Maximum Heights (in) | 9.29 |
| Outside Diameter (in) | 5.11 |
| Cylinder Bore Diameter (in) | 3.74 |
| Plunger Diameter (in) | 3.15 |
| Base to Adv. Port (in) | 1.18 |
| Saddle Diameter (in) | 1.96 |
| Weight (lbs) | 25.000000 |
