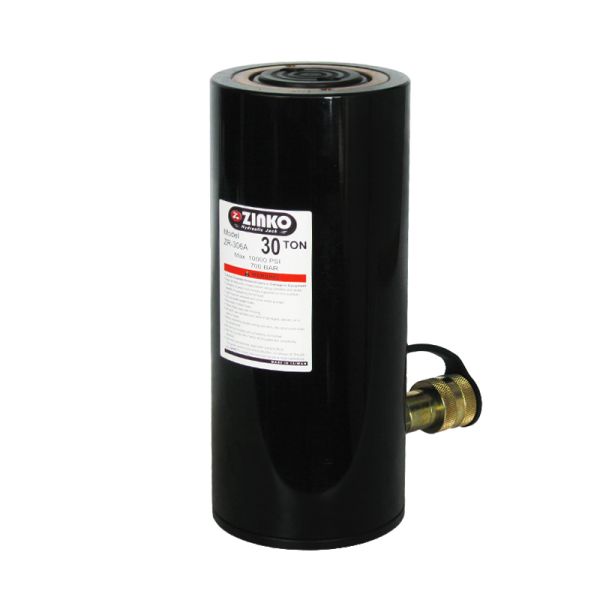

ZR-306A, 30 Ton 6" Stroke Aluminum Single Acting Cylinder
$1,681.71
In stock
Only 1 left
SKU
21A-306
Overview
The Zinko ZR-306A Aluminum Hydraulic Cylinder maximizes your reach in the 30-ton lineup with a generous 6.00" stroke. Despite its impressive 16.96" extended height, this lightweight powerhouse weighs just 24 pounds and retracts to a manageable 11.06" profile for easy transport around the shop. It is crafted from specialized heat-treated aluminum alloys to ensure maximum fracture resistance under intense loads. Designed to connect swiftly to any 10,000 psi air-over-hydraulic pump, the cylinder comes ready for action with high-flow couplers, a stabilizing grooved saddle, and a durable steel base plate.
Special Features:
- All models come with 3/8" NPT fast-flow quick-connection couplers and dust caps.
- Made of the strongest aluminum alloys and heat-treated to provide a maximum combination of strength and fracture resistance.
- Grooved saddles for stability.
- Steel base-plated for increased durability.
- Optional valve to control cylinder speed can also be used as shut off valve for temporary load holding.
- Optional aluminum base provides extra support and stability for the 50 ton cylinders.
Country of Origin: Taiwan
| Capacity (Tons) | 30 |
|---|---|
| Stroke (in) | 6.0 |
| Oil Capacity (in³) | 40 |
| Minimum Height (in) | 11.06 |
| Maximum Heights (in) | 16.96 |
| Outside Diameter (in) | 3.93 |
| Cylinder Bore Diameter (in) | 2.95 |
| Plunger Diameter (in) | 2.36 |
| Base to Adv. Port (in) | 1.29 |
| Saddle Diameter (in) | 1.57 |
| Weight (lbs) | 24.000000 |
