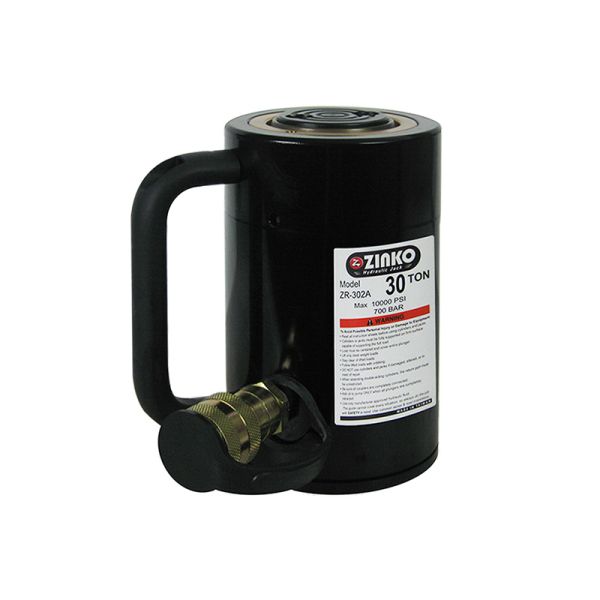

ZR-302A, 30 Ton 2" Stroke Aluminum Single Acting Cylinder
$1,345.37
In stock
Only 1 left
SKU
21A-302
Overview
The Zinko ZR-302A Aluminum Hydraulic Cylinder delivers reliable 30-ton lifting performance in a lightweight package. This compact unit features a 2.00” stroke, a 7.12” collapsed height, and a total weight of only 17 pounds, making it highly portable and easy to position in tight spaces. Built from premium heat-treated aluminum alloys, it provides exceptional fracture resistance while working efficiently with any standard 10,000 psi air-over-hydraulic pump. The cylinder includes a steel base plate for durability, a grooved saddle for enhanced load stability, and standard fast-flow quick-connection couplers to keep your operations moving smoothly.
Special Features:
- All models come with 3/8" NPT fast-flow quick-connection couplers and dust caps.
- Made of the strongest aluminum alloys and heat-treated to provide a maximum combination of strength and fracture resistance.
- Grooved saddles for stability.
- Steel base-plated for increased durability.
- Optional valve to control cylinder speed can also be used as shut off valve for temporary load holding.
- Optional aluminum base provides extra support and stability for the 50 ton cylinders.
Country of Origin: Taiwan
| Capacity (Tons) | 30 |
|---|---|
| Stroke (in) | 2.00 |
| Oil Capacity (in³) | 13 |
| Minimum Height (in) | 7.12 |
| Maximum Heights (in) | 9.09 |
| Outside Diameter (in) | 3.93 |
| Cylinder Bore Diameter (in) | 2.95 |
| Plunger Diameter (in) | 2.36 |
| Base to Adv. Port (in) | 1.29 |
| Saddle Diameter (in) | 1.57 |
| Weight (lbs) | 17.000000 |
