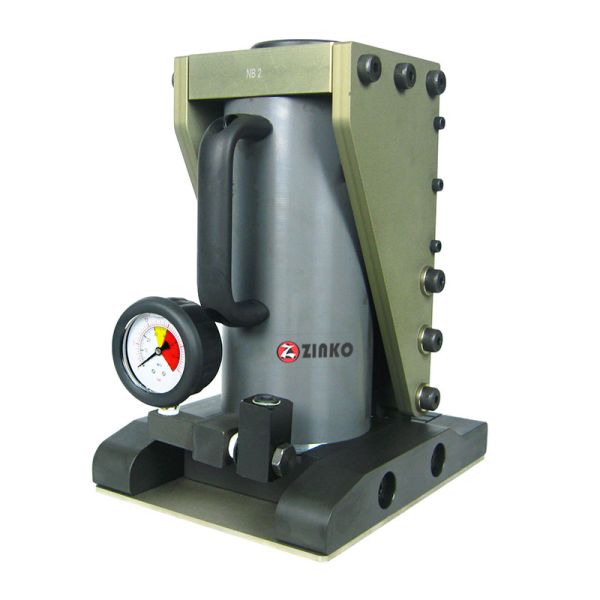

RHC-15A, 15 TON ALUMINUM RAM TOE
$3,477.93
In stock
SKU
82-015A
Overview
The RHC-15A hydraulic toe cylinder provides an expanded 15-ton lifting capacity, tailored for heavy rigging, bridge maintenance, and large-scale industrial assembly. Utilizing a rugged aluminum body to improve jobsite portability without compromising strength, the unit delivers 4.92" of controlled lift from either the top saddle or the toe. A low 1.18" starting toe clearance makes it practical to engage low-profile machinery and tight structural pick points. Powered through an external manual or pneumatic pump, the remote hydraulic connection allows technicians to direct heavy positioning and leveling work from an optimal vantage point and a comfortable working distance.
Special Features:
- These toe cylinders are designed to lift loads with a very low clearance. The toe area can pick up the load from as low as 0.88 inches, which is the lowest pick up point in the industry.
- Easily connecting the port to any hand pump or air pump. These toe cylinders will give the operator full control of the lift from a distance whenever close quarters operation is not accessible. Coupler connection port can be operated at any direction.
- 5 and 10 ton models come with steel cylinder.
- 10 and 25 ton models come with aluminum cylinder lighter weight for mobility.
Country of Origin: Taiwan
| Capacity (Tons) | 15 |
|---|---|
| Oil Capacity (in³) | 32.55 |
| Minimum Height - Toe (in) | 1.18 |
| Minimum Height - Head (in) | 14.33 |
| Maximum Height - Toe (in) | 6.10 |
| Maximum Height - Head (in) | 19.25 |
| Ram Lift (in) | 4.92 |
| Toe Area (in) | 2.34 x 3.70 |
| Base Area (in) | 10.92 x 9.36 |
| Weight (lbs) | 65.000000 |
